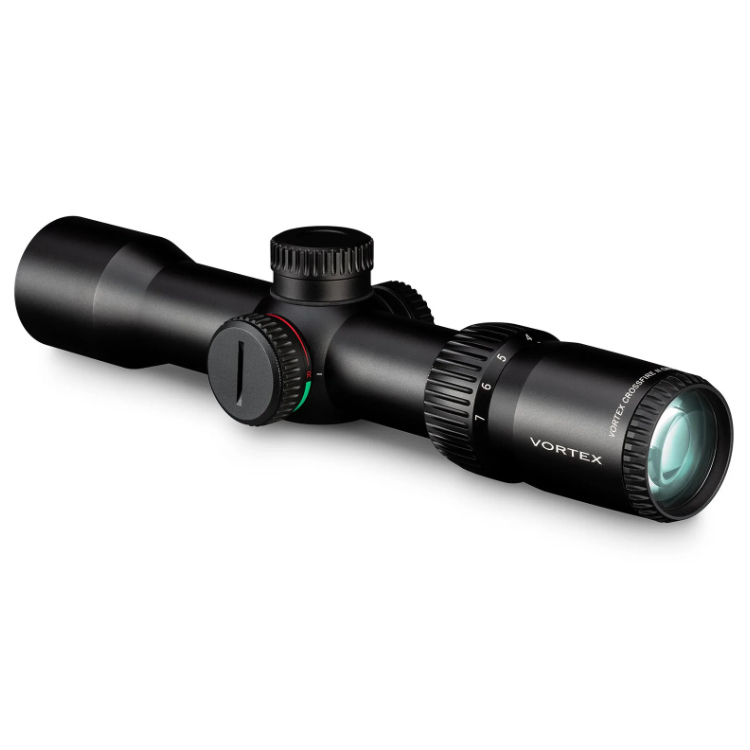

First light, last light, and all day long, this crossbow topper will have you stacking bolts and filling tags in no time. Our purpose-built reticle not only gives you holdover points out to 100 yards, it features red and green illumination for low-light shooting. We also included the magnification and FPS on the magnification ring to keep the scope compatible with a variety of crossbows and setups, and a wide field of view makes it perfect for a variety of shooting situations. Plus, we’re including rings, flip caps, and a neoprene cover, so it’s ready to mount right out of the box. 30mm rings included have a height of 1.1″ (28mm).
| Magnification |
2-7x |
| Objective Lens Diameter |
32 mm |
| Focal Plane |
Second Focal Plane |
| Turret Style |
Low Capped |
| Tube Size |
30 mm |
| Adjustment Graduation |
1/2 MOA |
| Parallax Setting |
Fixed @75 yds |
| Max Windage Adjustment |
160 MOA |
| Max Elevation Adjustment |
160 MOA |
| Travel Per Rotation |
30 MOA |
| Field of View |
57.5’ – 16.4’ @ 100 yards |
| Eye Relief |
2.7 inches |
| Length |
9.5 inches |
| Weight |
14 oz |
| Multi-Coated |
Fully Multi-Coated |
| Shockproof |
Rugged construction withstands recoil and impact. |
XBR-2® RETICLE (MOA)
The XBR-2® reticle is specifically designed for crossbows for a 40-yard zero and fast, accurate holdovers from 20-100 yards. The reticle is also equipped with dual illumination, red or green, for accuracy in low light.
Included:
- 2 – 30mm rings
- Flip caps (set)
- Neoprene cover
- Lens cloth
- CR2032 battery
- T-15 Torx wrench
